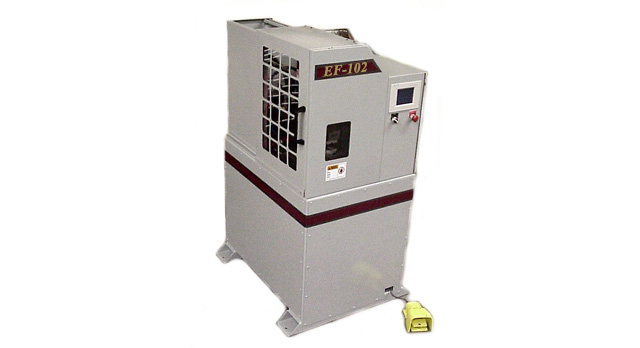

UTE EF-102 End Former

  • UTE EF Series 102 End Former

UTE’s EF Series pipe end formers are designed with a self-contained hydraulic system for fast production with precise, repeatable results. Constructed from a square tube frame for maximum strength and durability, these pipe end formers are designed with off-the-shelf parts making maintenance a breeze. The machine guard is completely enclosed with a tamper-proof interlock for worker safety and security. These end formers come standard with a 5.5” touchscreen with optional controllers available. This versatile line of pipe end formers can tackle any challenge and deliver quality results, every time.

Standard Features

  • 5.5’’ Touchscreen
  • Square Tube Frame Construction
  • NEMA 12 Enclosures
  • Completely Enclosed Machine Guard w/Tamper Proof Interlock
  • Foot Activation Switch
  • Quick Change Tooling Design
  • Self-Contained Hydraulic System
  • Jog Mode
  • Auto Shutdown After 2 Minutes
  • Self Diagnostics
  • Cycle Counter
  • One Year Limited US Warranty

Optional Features

  • Allen Bradley Controller
  • G.E. Fanuc Controller
  • Omron Controller
  • Modicon Controller
  • Parts Lubricator
  • Auto Loader/Unloader

OD Capacity Specifications

  • UTE-EF-101 1 hit Up to 1″ OD
  • UTE-EF-102 2 hits Up to 1″ OD
  • UTE-EF-104 4 hits Up to 1″ OD
  • UTE-EF-202 2 hits Up to 2″ OD
