Alpine 80ED CNC Tube Controller Bender with BendPro

Alpine 80ED CNC Tube Bender with BendPro Controller

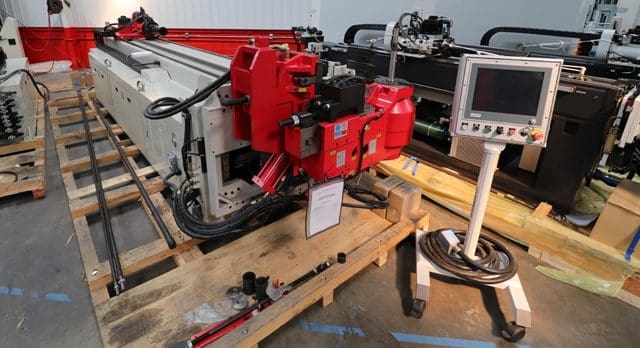

In stock and ready to ship immediately, this Alpine AB80ED Series hybrid electric CNC tube bender has a maximum O.D. capacity of 3 inches, a double stack tooling design with 4 axes (Y- Feeding, B-Rotation, C-Bending and X- Horizontal tooling changing) and is driven by an A/C servo motor featuring Alpine’s patented planetary gear-driven bending head.. Its unique compact design provides a highly accurate bending result with minimized machine interference, enhancing rigidity, speed reduction and high torque transmission. Paired with the versatile BendPro G2 V3 touchscreen controller for easy operation and programming, this CNC tube bender is perfectly suited for application in the furniture, automotive, motorcycle, fitness equipment and aerospace industries, just to name a few.

Standard CNC Tube Bender and Accessories

BendPro G2V3 Touch Screen control — Easy and fast programming
Left or right hand bending Double Stack Tooling — Draw Bending
DOB, POB, DBB, BHH 4 Axes are A/C Servo Motor
Patented Direct drive A/C servo motor bending head — fewest interference area
Adopts planetary gears assembly as the speed reduction and torque transmission
Patented Cam-Type shifting system on bending head (ED only)
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes -the interaction between Y,B,C axis
Booster Device of Pressure Die (excludes 18,30 model)
With Independent programmable speeds Y, B, and C axes (10×8)
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)

BendPro G2 V3 Controls

Quickly becoming the industry standard software controller, BendPro G2V3 control system designed to enhance performance, functionality, and reliability.

Higher performance increases production and quality

Fast, simultaneous, and overlapping motion increases production
Optimized sequences are generated and checked before any material is bent
Extremely accurate and repeatable to produce higher quality parts
Quick and easy to program and operate

Enhanced functionality so your benders can do more

Interfaces to CAD, CMM, office PCs, the Internet, robots, etc.
Supports all devices and servos, including analog and digital
Enables the use of tube cutters and hole punches on the bender
Support for push bending to produce large multiple-radii bends and coils
Designed to work on any bender

Proven reliability for more up-time and longer bender life

Industrial Beckhoff PC serves as both the HMI and machine controller

No servo cards or motion controllers means fewer components and wires
All components are stocked worldwide
Guaranteed long-term availability
Best support in the industry

Easy to Use

BendPro G2 V3 was designed with ease of use in mind and is based on the Windows operating system. The first and main screen displayed is the Master Menu. From the Master Menu the operator can operate the bender and quickly access all other control screens including the Parts Editor. A graphical representation of the bender and its functions are displayed on a rugged, high-resolution touchscreen. Finally, the Master Menu is designed to effectively communicate production status and machine status including any warning messages or alarms that might require attention.

CAD Interface

BendPro G2 V3 can automatically import tube geometries from virtually any CAD program including SolidWorks, Solid Edge, AutoCAD, Inventor, CATIA, Creo Elements (formerly known as Pro/E), etc. This popular option speeds up programming while reducing data entry mistakes.

3D Simulation

The 3D Simulation Option is primarily used to detect potential collisions between the tube and the machine or tooling. This useful feature can quickly optimize the bending sequence so that cycle times may be reduced. In addition, it can estimate cycle times which allows for accurate bidding. BendPro G2 V3 uses the same software to control the 3D machine simulations as it does the actual bending machine. This allows for very accurate simulations and estimated cycle times. The 3D Simulation Option is easily enabled on the BendPro G2 V3 PC or on office PCs with the BendPro G2 V3 software.
