PHTUS Series

Combo Sheet & Tube Fiber Laser Cutter

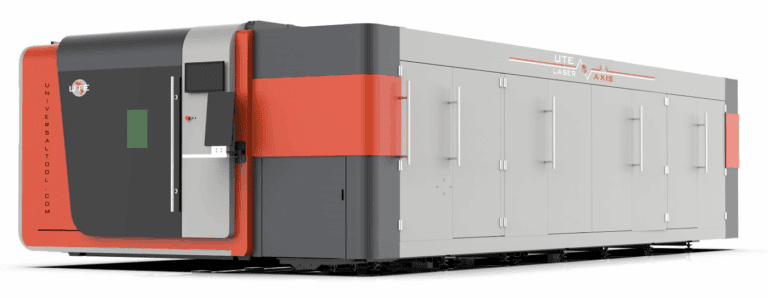

Laser cutting machine product graphic

Features

Enclosed sheet & tube integrated design

  • Dual sheet and tube integrated design
  • Highly cost-effective
  • Fully enclosed for personnel protection


Exchange platform

  • The use of the exchange platform enables quick and complete pipe and sheet changing, saving time for loading and unloading.


Specialized operating system for sheet & tube cutting

  • Adopting an independent dual-screen design, this tube and sheet laser cutting machine can simultaneously meet the cutting requirements for both sheet and pipe processing, ensuring efficient and convenient production.

Large diameter pneumatic chuck

  • One-key clamping
  • Automatic centering
  • Pneumatic clamping with adjustable clamping force
  • Capable of cutting angle steel and channel steel


Zone dust removal

  • This tube and sheet laser cutting machine is designed with exhaust structure on both sides of the bed. Large diameter upgraded air ducts in multiple zones significantly improve the exhaust effect compared to those with middle exhaust structure.

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

In Stock
Model Laser Power Working Area Accuracy Position Reposition Accuracy Max Movement Speed Max Acceleration OD Round & Square
PHTUS3015 6Kw 3050×1530mm ±0.03mm ±0.02mm 100m/min 1.2G 10-225mm
PHTUS6015 6Kw 6050×1530mm ±0.03mm ±0.02mm 100m/min 1.2G 10-225mm
PHTUS4020 6Kw 4050×2030mm ±0.03mm ±0.02mm 100m/min 1.2G 10-225mm
PHTUS6020 6Kw 6050×2030mm ±0.03mm ±0.02mm 120m/min 1.2G 10-225mm
PHTUS6025 6Kw 6050×2530mm ±0.03mm ±0.02mm 120m/min 1.2G 10-225mm
