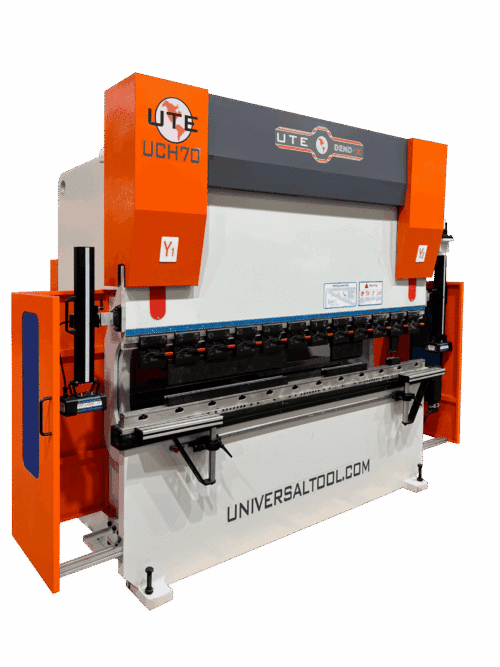

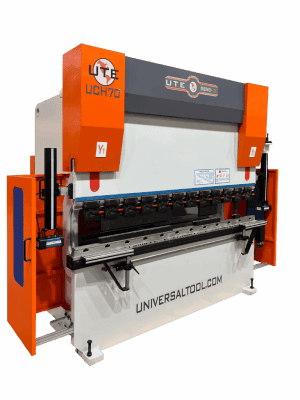

The UTE UCH Series is Universal Tool & Engineering’s newest line of high-performance sheet metal press brake machines. These machines are engineered for exceptional accuracy, high-speed operation, and long-term reliability in demanding production environments.
With positioning accuracy within 0.025 mm and repeat positioning within 0.01 mm, the UCH Series delivers intricate bends and flawless results across a wide range of sheet widths and material thicknesses. Available in 50 to 320 ton capacities, these machines are built to scale with your production requirements.
Standard features include:
The UCH Series is ideal for manufacturers who need high-speed, high-accuracy bending without sacrificing stability or repeatability.
| Model | Tonnage (KN) | Bending Length | Axes | Delem Controller | Frame Distance | Effective Open Height | Accuracy | Dimension |
|---|---|---|---|---|---|---|---|---|
| UCH50 | 500 | 1600mm | 4+1 with DA53T | DA53T | 1230mm | 495mm | ±0.01mm | 67” *63” *81” |
| UCH70 | 700 | 2500mm | 6+1 with DA66T | DA53T | 2100mm | 495mm | ±0.01mm | 89” *54” *87” |
| UCH100 | 1000 | 3200mm – 4100mm | 6+1 with DA66T | DA53T | 2700mm | 45mm | ±0.01mm | 32” *62” *111” |
| UCH160 | 1600 | 3200mm – 6000mm | 6+1 with DA66T | DA53T | 2700mm | 545mm | >±0.01mm | 132” *62” *111” |
| UCH200 | 2000 | 3200mm | 6+1 with DA66T | DA53T | 2700mm | 545mm | ±0.01mm | 147” *66 *107” |
| UCH200 | 2000 | 4100mm | 6+1 with DA66T | DA53T | 3600mm | 545mm | ±0.01mm | 182” *70” *107” |
| UCH320 | 3200 | 3200mm – 6000mm | 6+1 with DA66T | DA53T | 3600mm | 545mm | ±0.01mm | 190” *83” *126” |
Get clear, practical answers to the most common questions about UTE press brakes, the UCH Series, accuracy specifications, installation, training, service support, and machine configurations. This section covers what matters on the shop floor, performance, uptime, setup, and long-term reliability, so you can evaluate the right solution with confidence.
Universal Tool offers precision industrial press brakes designed for a wide range of sheet metal bending applications. Our solutions include CNC press brakes engineered to meet varying tonnage, bend length, and production requirements for both job shops and industrial manufacturers.
Our equipment is designed to bend common sheet metal materials such as mild steel, stainless steel, aluminum, and other alloys, including galvanized and brass. Material thickness and capacity depend on the specific configuration and tooling.
Choosing the right option depends on factors like material type, thickness, bend length, required tonnage, and production volume. Our team works directly with customers to evaluate their applications and recommend a press brake solution that delivers accuracy, efficiency, and long-term performance.
Yes. Every system we supply is backed by professional installation, operator training, and ongoing technical support for long-term operational success. Our goal is to ensure your equipment is running efficiently and your team is confident from day one.
UTE precision tube laser cutting machines are engineered for high-speed, high-accuracy processing of round, square, rectangular, oval, angle, channel, and structural profiles. From compact single-chuck systems to advanced three-chuck configurations, UTE offers solutions for short-run fabrication through high-volume production.
UTE press brakes deliver high-accuracy sheet bending across a wide range of materials and thicknesses. With capacities ranging from 50 to 320 tons and repeat positioning accuracy down to ±0.01 mm, UTE press brakes are designed for clean, consistent bends in demanding production environments.
UTE CNC tube benders are built for tight-radius, multi-plane, and complex geometry bending across automotive, HVAC, aerospace, and industrial applications. Available in all-electric, hybrid, and hydraulic configurations, UTE benders are designed for speed, repeatability, and long-term durability.
