TUBE LASER
CUTTING MACHINES

HIGH PRECISION FIBER LASER SYSTEMS

3 Year Warranty • Installation and 3 day training • 24/7 Tech Support

Products

REQUEST A QUOTE

TMUS Series Single Chuck

Tube Fiber Laser Cutter

Metal fabrication equipment product
Efficient and flexible chuck
  • Standard pneumatic chuck for tube with strong clamping force, speedy response, and precise cutting.
  • Uses single diameter chuck resulting in no damage to the surface of the pipe. Chuck replacement is simple and fast.
  • Collet replacement is simple and fast, and facilitates high quality of cutting.

Intelligent and continuous feeding with rapid cutting

  • The feeding roller on the enclosed fiber laser cutting machine clamps the pipe and circulates feeding without resetting, reducing the waiting time and utilizing the maximum feeding speed.
  • Full/semi-automatic feeding mode is selected to support batch cutting of small pipes, helping to reduce manpower and achieve a higher processing efficiency.

Time and materials

  • The ultra-short cutting tail material can be within at least 80mm, which maximizes the utilization rate of materials and reduces the cost of waste materials.
  • The intelligent central control system on this laser tube cutter has high performance with adjustable focusing cutting head, a variety of equipment functions and efficient response.
Flexible and effortless processing
  • Fiber laser cutting is fast and efficient.
  • The enclosed fiber laser cutting machine supports cutting of round pipe, square pipe, rectangular pipe, oval pipe, multi-pipe processing, and supports 7m ultra-long workpiece processing.

Starting at $179,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

In Stock
ModelLaser PowerOD/DiagonalPositioning AccuracyRepositioning AccuracyMax Movement SpeedMax Acceleration
TMUS803kW0.6-3”±0.05mm±0.05mm65.6”/sec840 degrees/sec
REQUEST A QUOTE

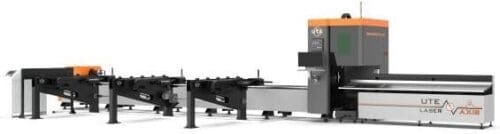

TAUS Series Two-Chuck

Tube Fiber Laser Cutter

TAUS6024 automation system product

Pneumatic auto-correcting centering chuck

  • Pneumatic Support Rollers automatically align the pipe to the center of the chuck.

Seamless cutting with ease to replace

  • Adopt the same diameter chuck, no damage to the surface of the pipe, chuck replacement is simple and fast, high quality of cutting.

Tube cutting software

  • Cypcut FSCUT5000 pipe cutting system supports high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped, elliptical, and other stretched pipes, as well as angle steel and channel steel.

Efficient auto-lubrication system

  • Manually set the number and time interval of automatic lubrication according to the length of equipment use
  • Automatic lubrication of guide rails, sliders, gears, racks, and other components, recycling, and centralized processing of lubricating waste oil

Starting at $209,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

In Stock
ModelLaser Output PowerOD/DiagonalAccuracy PositionReposition AccuracyMax Movement SpeedMax Acceleration
TAUS60163kW - 6kW.4-6.3”±0.05mm±0.05mm78.8"/sec840 degrees/sec
TAUS60243kW - 12kW.8-9.4”±0.05mm±0.05mm65.6"/sec600 degrees/sec
TAUS60366kW - 12kW0.8-13.8”±0.05mm±0.05mm52.46"/sec360 degrees/sec
TAUS90163kW - 6kW.4-6.3”±0.05mm±0.05mm78.8"/sec840 degrees/sec
TAUS90243kW - 12kW.8-9.4”±0.05mm±0.05mm65.6"/sec600 degrees/sec
TAUS90283kW - 12kW.8-11”±0.05mm±0.05mm65.6"/sec601 degrees/sec
TAUS90366kW - 12kW.8-13.8”±0.05mm±0.05mm52.46"/sec360 degrees/sec
TAUS120243kW - 12kW.8-9.4”±0.05mm±0.05mm65.6"/sec600 degrees/sec
REQUEST A QUOTE

TLUS Series Two-Chuck

Tube Fiber Laser Cutter

TAUS automation system product

Pneumatic auto-correcting centering chuck

  • Pneumatic Support Rollers automatically align the pipe to the center of the chuck.

Seamless cutting with ease to replace

  • Adopt the same diameter chuck, no damage to the surface of the pipe, chuck replacement is simple and fast, high quality of cutting.

Tube cutting software

  • Cypcut FSCUT5000 pipe cutting system supports high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped, elliptical, and other stretched pipes, as well as angle steel and channel steel.

Efficient auto-lubrication system

  • Manually set the number and time interval of automatic lubrication according to the length of equipment use
  • Automatic lubrication of guide rails, sliders, gears, racks, and other components, recycling, and centralized processing of lubricating waste oil

Starting at $209,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

In Stock
ModelLaser Output PowerOD/DiagonalAccuracy PositionReposition AccuracyMax Movement SpeedMax Acceleration
TLUS60163kW - 6kW.4-6.3”±0.05mm±0.05mm78.8"/sec840 degrees/sec
TLUS60243kW - 12kW.8-9.4”±0.05mm±0.05mm65.6"/sec600 degrees/sec
TLUS60366kW - 12kW0.8-13.8”±0.05mm±0.05mm52.4"/sec360 degrees/sec
TLUS90163kW - 6kW.4-6.3”±0.05mm±0.05mm78.8"/sec840 degrees/sec
TLUS90246kW - 12kW.8-9.4”±0.05mm±0.05mm65.6"/sec600 degrees/sec
REQUEST A QUOTE

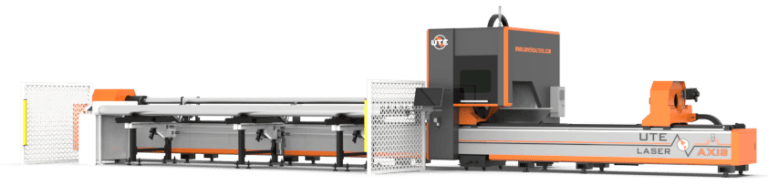

TSUS Series Three-Chuck

Tube Fiber Laser Cutter

Tube bending machine product

Three chucks clamping and zero tail materials

  • Innovative three-chuck clamping technology increases accuracy with force adapting chuck.
  • The integrated chuck base improves the overall stability of the chuck and achieves high-precision positioning.
  • The three chucks work together as the tube moves through the middle chuck’s internal cutting operation.

Double-sided follow-up support device

  • Can reduce processing errors, ensuring uniform force on the entire metal pipe, and improved cutting accuracy.
  • Provides real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.

Wide range of pipe cutting

  • This pipe laser cutting machine supports the processing of 12,000mm(40ft) ultra-long whole tubes, channel steel, angle steel, I-beam, and other profiles.
  • The maximum load bearing capacity of a single pipe is 900KG (1985 lbs.)

Integrated frame bed design

  • The stability and cutting precision of the bed are greatly improved with the integrated processing technology of a high-precision gantry machine tool, through furnace annealing and aging treatment. This also increases the life span of the bed.

Starting at $429,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

In Stock
ModelLaser Output PowerOD/DiagonalAccuracy PositionReposition AccuracyMax Movement Speed
TSUS6036L6kW - 12kW1.2-13.8”±0.05mm±0.05mm39.4"/sec
TSUS60366kW - 12kW0.8-13.8”±0.05mm±0.05mm39.4"/sec
TSUS9036L6kW - 12kW1.2-13.8”±0.05mm±0.05mm39.4"/sec
TSUS90366kW - 12kW1.2-13.8”±0.05mm±0.05mm39.4"/sec
TSUS12036L6kW - 12kW.8-13.8”±0.05mm±0.05mm39.4"/sec
REQUEST A QUOTE

Tube Laser Cutter

FREQUENTLY ASKED QUESTIONS

What specifications should I look for in tube laser cutting machines?

When evaluating tube laser cutting machines, prioritize fiber‑laser power (up to 30 kW), positioning accuracy (±0.001″), and capability to handle various profiles including round, square, and rectangular. These factors ensure high precision and throughput.

UTE tube laser machines excel in metal fabrication across industries—cars, HVAC, furniture and industrial equipment, offering high‑speed cuts on tubes and intricate sections for complex jobs.

UTE systems include complimentary U.S.‑based installation, operator training, and a 3‑year warranty. Machines also feature robust frames, automated lubrication and parts support to maximize uptime.

Modern tube lasers minimize cut‑tail length (as little as 80 mm) and enable optimized nesting of profiles. This results in less scrap, lower material cost and higher production efficiency.
