HIGH-POWER SHEET
FIBER LASER CUTTING MACHINES
Flat sheet precision. High-speed production. Built for industrial throughput.
3 Year Warranty • Installation and 3 day training • 24/7 Tech Support

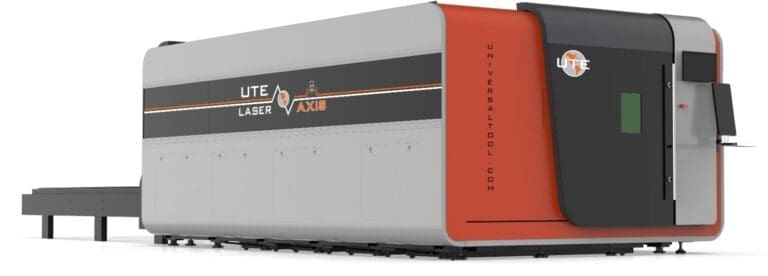

PHUS SERIES
DEDICATED SHEET LASER CUTTER MACHINES
The PHUS Series sheet laser cutter systems are purpose-built for flat sheet metal processing in demanding industrial environments. Designed around a rigid welded steel frame and high-dynamic CNC motion architecture, these machines deliver consistent accuracy at production speeds.
Engineered for job shops, OEMs, and high-volume manufacturers, the PHUS Series balances cutting power, motion stability, and long-term reliability.
Core Performance Capabilities (6Kw Standard)
- Working areas up to 6050 × 2530mm
- Positioning accuracy: ±0.03mm
- Reposition accuracy: ±0.02mm
- Maximum movement speed: up to 120 m/min
- Maximum acceleration: 1.5G
- Auto-focusing laser head with up to ±0.001″ precision

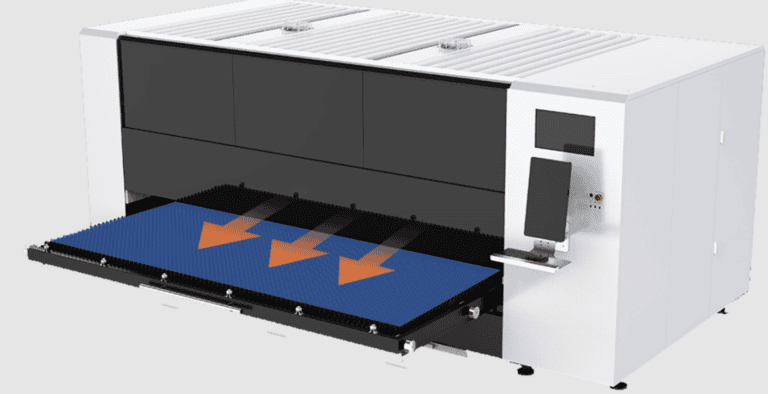

Fully Enclosed Design For Safety & Environmental Protection
- Cutting smoke and dust are removed and filtered
- Effectively prevents safety risks caused by sparks
New Heat Insulation Technology
- New fire-resistant and heat-insulation technology improves equipment lifespan and ensures cutting precision
Ensure Stable Equipment Operation
- Newly designed with crossbeam bed structure
- Designed for high-efficiency processing
- Maintains accuracy with no deformation in long-term cutting
Improve Production Efficiency With Fast Speed Cutting
- Max acceleration: 1.5G
- Max linkage speed: 120m/min
- Efficient batch cutting of medium-thin plates
Starting at $144,900*
Available in multiple sizes / capacities with additional equipment upgrades
*Base price without upgrades
| Model | Laser Power | Working Area | Accuracy Position | Reposition Accuracy | Max Movement Speed | Max Acceleration |
|---|---|---|---|---|---|---|
| PHUS1313 | 3kW | 1219*1219mm | ±0.03mm | ±0.02mm | 65”/sec | 600 degrees/sec |
| PHUS3015 | 6kW - 30kW | 3050*1530mm | ±0.03mm | ±0.02mm | 65”/sec | 600 degrees/sec |
| PHUS4020-6kW | 6kW - 30kW | 1981*3962mm | ±0.03mm | ±0.02mm | 65”/sec | 600 degrees/sec |
| PHUS6025-6kW | 6kW - 30kW | 2438*6096mm | ±0.03mm | ±0.02mm | 65”/sec | 600 degrees/sec |
PHUS Compact Series
DEDICATED SHEET LASER CUTTER MACHINES
Driving these sheet laser cutting machines is a potent combination of high acceleration, advanced laser dynamics, and intelligent software control (up to 78” per second on thinner material). Built to last, UTE’s PHUS Compact Series sheet metal laser cutting machines feature rock-solid frames with high-strength welded steel and aviation-grade aluminum alloy components. A centralized automated lubrication system ensures these laser workhorses outwork and outlast the competition.
- Working Area: 10 x 5 feet
- Positioning Accuracy: 0.001”
- X/Y Axis Max. Speed: 65”/sec
- Z-axis Travel Distance: 3.1”
- Dimension: 213x112x91
- Weight: 6,612 lbs.
- Voltage: 480V
- Single Table Load Bearing: 1,102 lbs.
- Yaskawa Servo Motors and Drives
- Hiwin Rails and Bearings
- Display Size: 32 inch
- Enclosed Protection: Yes
- Waste Cart Quantity: 3 sets (6 pcs)
Starting at $144,900*
Available in multiple sizes / capacities with additional equipment upgrades
*Base price without upgrades
PHTUS SERIES
INTEGRATED TUBE & SHEET LASER CUTTER MACHINES
The PHTUS Series combines flat sheet and tube cutting capability into one industrial platform. Designed for fabrication environments that require flexibility without multiple machines, this system reduces floor space while expanding production capability.
This is a true dual-function CNC fiber laser cutter, not an add-on system.
Core Performance Capabilities
- Working areas up to 6050 × 2530mm
- Position accuracy: ±0.03mm
- Reposition accuracy: ±0.02mm
- Max speeds: up to 120 m/min
- Acceleration: 1.2G
- OD round & square range: 10–225mm
- Automatic clamping and rotation system
- Profile cutting for round, square, rectangular tubing
- Suitable for structural and light-to-medium gauge applications
Exchange Platform
- The use of the exchange platform enables quick and complete pipe and sheet changing, saving time for loading and unloading.
Zone Dust Removal
- This tube and sheet laser cutter machine is designed with exhaust structure on both sides of the bed. Large diameter upgraded air ducts in multiple zones significantly improve the exhaust effect compared to those with middle exhaust structure.
Enclosed Sheet & Tube Integrated Design
- Dual sheet and tube integrated design
- Highly cost-effective
- Fully enclosed for personnel protection
Large Diameter Pneumatic Chuck
- One-key clamping
- Automatic centering
- Pneumatic clamping with adjustable clamping force
- Capable of cutting angle steel and channel steel
Specialized Operating System For Sheet And Tube Cutting
- Adopting an independent dual-screen design, this tube and sheet laser cutter machine can simultaneously meet the cutting requirements for both sheet and pipe processing, ensuring efficient and convenient production.
Starting at $249,900*
Available in multiple sizes / capacities with additional equipment upgrades
*Base price without upgrades
| Model | Laser Power | Working Area | Accuracy Position | Reposition Accuracy | Max Movement Speed | Max Acceleration | OD Round & Square |
|---|---|---|---|---|---|---|---|
| PHTUS3015 | 6kW - 12kW | 10-225mm | 1524*3048mm | ±0.03mm | ±0.02mm | 65”/sec | 600 degrees/sec |
| PHTUS4020 | 12kW | 10-225mm | 1981*3962mm | ±0.03mm | ±0.02mm | 65”/sec | 600 degrees/sec |
| PHTUS6025 | 6kW - 12kW | 10-225mm | 2438*6096mm | ±0.03mm | ±0.02mm | 65”/sec | 600 degrees/sec |
WHEN TO CHOOSE PHUS VS. PHTUS
Choose PHUS Series if:
- You primarily process flat sheet
- You require maximum acceleration (1.5G)
- Tube cutting is not a core requirement
- You want a dedicated high-throughput sheet platform
Choose PHTUS Series if:
- You process both sheet and tube regularly
- Floor space is limited
- You want flexibility without two capital purchases
- Mixed-production scheduling is common
Ready to Upgrade Your Sheet Metal Laser Cutting Equipment?
Whether you need a standalone sheet laser cutter or a fully integrated sheet and tube platform, UTE delivers industrial fiber laser performance engineered for speed, accuracy, and long-term reliability.
Request a quote today and match your system to your production demands.
Sheet Laser
FREQUENTLY ASKED QUESTIONS
Get clear, practical answers to the most common questions about UTE Sheet Laser Cutting Machines, including available models, power ranges, cutting capacities, material compatibility, automation options, installation requirements, training, and ongoing service support. Learn more about what matters most on the shop floor—cut precision, speed, efficiency, ease of operation, uptime, and long-term performance—so you can confidently determine the right sheet laser solution for your production needs.
What thickness can a 6kW sheet fiber laser cutter cut?
A 6kW sheet fiber laser cutting machine can typically cut mild steel up to 1 inch (25mm), stainless steel up to 1 inch (25mm), and aluminum up to .551 inch (20mm), depending on material grade and cutting parameters. Higher power systems may allow increased thickness capacity.
What is the difference between sheet and tube fiber laser cutting machines?
Sheet fiber laser cutters are designed for flat plate processing. Tube fiber laser cutting machines are built for cutting round, square, rectangular, and structural tubing. Combination systems allow manufacturers to process both sheet and tube on one machine platform.
How much does an industrial sheet fiber laser cutting machine cost?
Industrial sheet fiber laser cutting machines typically start around $145,000 for a 6kW configuration. Final pricing depends on working area, automation features, exchange tables, enclosure options, and upgraded components. Financing options may be available.
What are the advantages of a fully enclosed fiber laser cutter?
Fully enclosed fiber laser cutting systems improve operator safety, contain sparks and debris, reduce dust exposure, and help facilities meet safety compliance standards while maintaining a controlled production environment.
