Pre-Owned UTE UHR10X3A Wire Bender

WIRE BENDERS

UTE UHR10X3A Wire Bender

When wire bending capacity gets tight, the impact shows up fast in missed ship dates, higher scrap, and slow changeovers. If you’re looking to ease pressure and increase production benchmarks, this unit is worth a closer look. This wire bender has only been in service for six months with minimal operating hours and is ready to go. Includes UC130 Uncoiler.

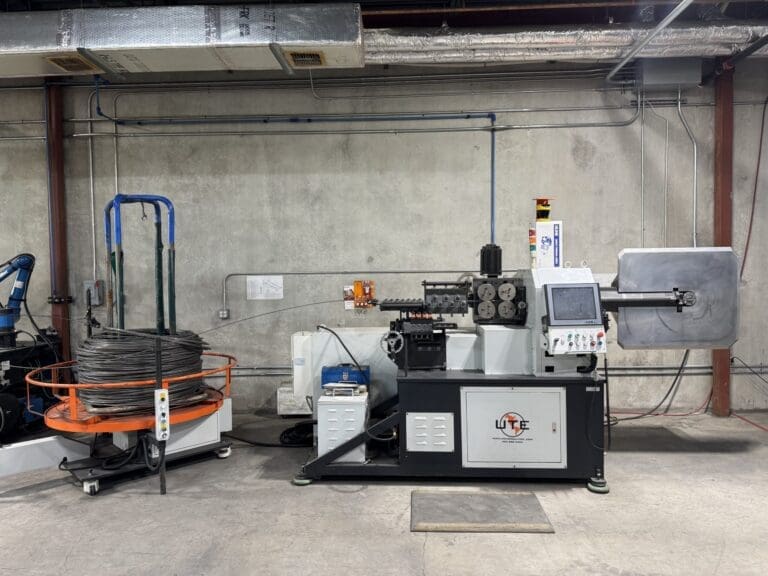

Wire bending machine for metal fabrication

Specifications

Wire Bender Specifications

  • 2024 Year Model
  • 22 Hours of Cycle Time
  • 0.12″~0.39″ Bending Capacity (Low Carbon Steel)
  • Unlimited Max. # of Bends
  • Unlimited Max. Feeding Length
    66.93 in/sec Feeding Speed
  • 400 deg/sec Rotation Speed
  • 800 deg/sec Bending Speed
  • ±0.0039 Feeding Repeatability
  • ±0.1 Rotation Repeatability
  • ±0.1 Bending Repeatability
  • 13kW Power
  • 3 Ø 220V Power Source
  • 137.80″L x 577.68″W x 66.54″H
  • 4850 lbs Operating Weight

Uncoiler Specifications

  • 57″ Plate
  • 4409 lbs Loading Capacity
  • 70″ Machine Length
  • 67″ Machine Width
  • 61″ Machine Height
  • Safety Mat
  • 2kW Power
  • 1433 lbs Overall Weight
