NC Tube Bending
Machines

For Precision & Semi-Automatic Tube Bending

1 Year Warranty • Installation and 3 day training • 24/7 Tech Support

Products

Alpine NC Series

UTE ALPINE NC SERIES HYDRAULIC SINGLE STACK NC TUBE BENDERS

The UTE Alpine NC tube bending machines are economical, hydraulic-drive, single-axis tube and pipe benders designed for precise, repeatable draw bending in production or prototype environments. Featuring a PLC-based Master I Controller with 10″ touch screen and 3D graphic display, these right-hand, single-stack machines use a hydraulically driven C (bending) axis with manually operated Y (feeding) and B (rotation) axes, including optional 4-position DBB flip stops for quick setups. With hydraulic Pressure Die Assist, water cooling, and multi-bend program storage, the NC tube bending machines deliver accurate, consistent bends across a wide capacity range, from the compact AB38NC (up to 1.5″ OD) through the heavy-duty AB220NC (up to 9.0″ OD), making them ideal for furniture, automotive, motorcycle, display, tube fabrication, and fitness equipment applications.

STANDARD NC TUBE BENDING MACHINES & ACCESSORIES (ALL NC-SERIES MODELS)

Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC- Single Stack Tooling for Draw Bending
Y, B Axes— Manual Feeding and Rotation
C Axis — Driven by 2 Speed Hydraulic Driven Bending Head
100 sets of Program Storage
Metric / Inch setting conversion
Booster Device of Pressure Die
Independent programmable speeds Y and B axes (10×8)

Water Cooling System
One shot Slide-way Lubrication for bend arm (reduce maintenance time)
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Adjusted Tools
Electric: As required (3 phase 208V or 220V or 480V)
Capacity by model (OD max):
- - AB38NC – up to 1.5″
  - AB50NC – up to 2.0″

Upgrade Options (ALL NC-SERIES MODELS)

AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Upgrade from 100 to 1000 program storage sets
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free-standing pedestal (replaces foot pedal)

Capacity by model

AB38NC – up to 1.5″
AB50NC – up to 2.0″
AB50NC – up to 3.0″
AB50NC – up to 3.5″
AB50NC – up to 4.0″
AB50NC – up to 5.0″
AB50NC – up to 6.0″
AB50NC – up to 7.0″
AB50NC – up to 9.0″

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB50NC	Hydraulic	50.8 mm or 2.0" OD	Single Stack	Right Hand
AB89NC	Hydraulic	88.9 mm or 3.5" OD	Single Stack	Right Hand
AB100NC	Hydraulic	101.6 mm or 4.0" OD	Single Stack	Right Hand
AB120NC	Hydraulic	127 mm or 5.0" OD	Single Stack	Right Hand
AB150NC	Hydraulic	152.4 mm or 6.0" OD	Single Stack	Right Hand
AB180NC	Hydraulic	180 mm or 7.0" OD	Single Stack	Right Hand
AB220NC	Hydraulic	220 mm or 9.0" OD	Single Stack	Right Hand
AB38NC	Hydraulic	38.1 mm or 1.5" OD	Single Stack	Right Hand

Alpine NC-PB Series

UTE ALPINE NC-PB SERIES 2 AXIS SEMI-AUTOMATIC NC TUBE BENDERS

The UTE Alpine NC-PB Series represents a step up in automation from the manual-rotation NC line, offering precise 2-axis control (B-axis servo rotation and hydraulic C-axis bending) while retaining manual Y-axis feeding with 4-position DBB flip stops for quick part positioning. Equipped with a PLC-based Master I Controller and 10″ touchscreen with 3-D graphic display, these single-stack draw benders integrate hydraulic Pressure Die Assist, multi-bend program memory, and a robust cooling and lubrication system for dependable performance. The NC-PB series provides an affordable, accurate solution for semi-automatic bending in industries such as furniture, automotive, motorcycle, display, and fitness equipment, making it ideal for both prototype work and production runs.

STANDARD MACHINE AND ACCESSORIES (NC-PB SERIES)

Master I Controller
PLC base 10″ B & W LCD Touch Screen control — Easy and fast programming
Right Hand Bending
ANC-PB- Single Stack Tooling for Draw Bending
B Axis— Driven by A/C servo motor
C Axis — 2-speed hydraulic driven bending head
Y Axis — Manual feeding with 4-position DBB flip stops
100 sets of Program Storage
Metric / inch conversion
Booster Device of Pressure Die
Independent programmable B-axis speed (10×8)
Water Cooling System
One-shot slide-way lubrication
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and maintenance manual
Tool box with adjustment tools
Electrical: 3-phase 208V / 220V / 480V

Upgrade Options (NC-PB Series)

AMRU — Anticipate Mandrel Retraction Unit
AML— Auto Mandrel Lubrication
Upgrade to 1000 program storage sets
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free-standing pedestal (replaces foot pedal)

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB50NC-PB	Hydraulic	50.8 mm or 2.0" OD	Single Stack	Right Hand
AB75NC-PB	Hydraulic	76.2 mm or 3.0" OD	Single Stack	Right Hand
AB89NC-PB	Hydraulic	88.9 mm or 3.5" OD	Single Stack	Right Hand
AB100NC-PB	Hydraulic	101.6 mm or 4.0" OD	Single Stack	Right Hand

Alpine T Series

UTE ALPINE T SERIES HYDRAULIC TWIN HEAD NC BENDERS

The UTE Alpine T Series consists of high-production twin-head hydraulic tube benders engineered for rapid, symmetrical part manufacturing. Equipped with NC or CNC touch-screen control, multi-groove tooling, and powerful crank-link compression systems, these machines deliver extremely strong forming pressure, rapid bending head movement, and exceptional anti-slip locking to ensure consistent quality in high-volume operations. T-Series models range from 4-axis twin-head configurations to 5-axis versions with servo-driven rotation, supporting in-plane bending, out-of-plane bending (T38-90), or both. Ideal for furniture, display, fitness, and other industries requiring symmetrical frames or mirrored components, the T-Series provides exceptional repeatability, speed, and durability across capacities up to 2.0″ OD.

STANDARD MACHINE AND ACCESSORIES (T SERIES)

CNC or NC Controller (model-dependent)
Twin Hand Bending
Multi-groove tooling design
Hydraulic-driven bending heads
In-plane bending (T38, T50, CNCT38-4A
In-plane & out-of-plane bending (T38-90 model)
Y1 / Y2 twin-head feeding axes
C1 / C2 twin-head bending axes
B-axis rotation (CNCT38-5A only)
Water cooling system
Foot pedal cycle start
Operation & maintenance manual
Tool box with adjustment tools
Electrical: 3-phase 208V / 220V / 480V

CAPACITY BY MODEL

CNCT38-4A: Up to 1.5″ OD
CNCT38-5A: Up to 1.5″ OD
T38-90: Up to 1.5″ OD
T38: Up to 1.5″ OD
50: Up to 2.0″ OD

UPGRADE OPTIONS (T SERIES)

Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free-standing pedestal (replaces foot pedal)

Model	Drive	OD Capacity	Tooling Stacks	Direction
CNCT38-4A	Hydraulic	38.1 mm or 1.5" OD	Single Stack	Right Hand
CNCT38-5A	Hydraulic	38.1 mm or 1.5" OD	Single Stack	Right Hand
T38-90	Hydraulic	38.1 mm or 1.5" OD	Single Stack	Right Hand

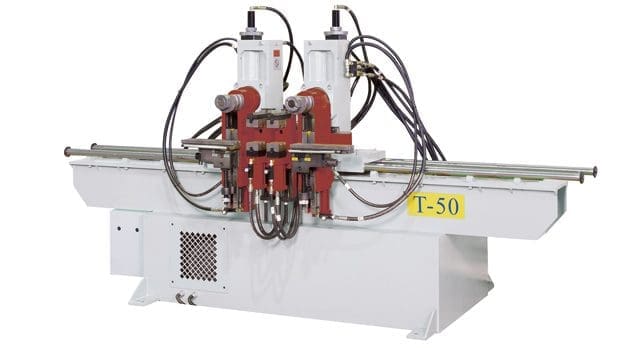

T50	Hydraulic	50.8 mm or 2.0" OD	Single Stack	Right Hand
T38	Hydraulic	38.1 mm or 1.5" OD	Single Stack	Right Hand
US51AE-11A-LR	All Electric	51 mm or 2" OD	Triple/Multi	Left and Right Hand

OUR OTHER PRODUCTS

Tube Lasers

PRESS BRAKES

TUBE BENDERS.

FREQUENTLY ASKED QUESTIONS

What materials can NC tube benders handle?

NC tube benders can bend a variety of materials, including mild steel, stainless steel, aluminum, copper, titanium, and specialty alloys. Material type and wall thickness determine the best tooling and bend radius.

Can NC tube benders perform mandrel bending?

Yes. Most NC tube benders support mandrel bending to prevent wrinkling, collapsing, or deforming tubes, especially when bending thin-wall tubing or tight radii.

What tube diameters can your NC tube benders bend?

Capacity depends on the model, but most NC tube benders can handle tube diameters ranging from ½ inch to 4 inches. Larger industrial models can sometimes exceed this range.

Are NC tube benders easy for operators to learn and use?

Yes. NC tube benders are designed to be user-friendly, with programmable angle inputs and simple controls. Operators can typically use the machine confidently with minimal training.
