Hybrid Tube
Benders

High-power precision for any  budget and production demand

3 Year Warranty • Installation and 3 day training • 24/7 Tech Support

Products

Select Series

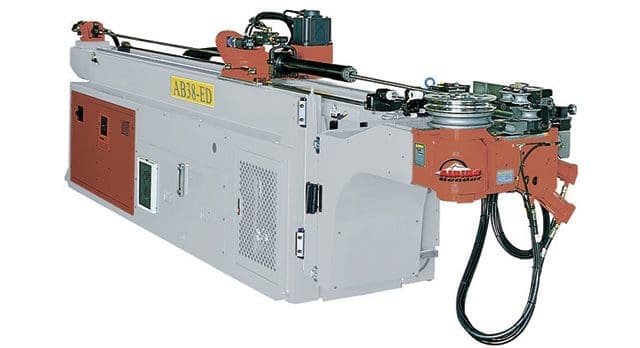

Hybrid 4 Axis CNC Tube Benders

STANDARD MACHINE AND ACCESSORIES

Electrical power filtering to stabilize incoming power
Control electrical cabinet isolation to minimize vibration
Spacious lay out and well labeled electrical cabinet for ease of maintenance
Control electrical cabinet air conditioner – for long lasting servo drives and components
Hydraulic oil filtering system with condition indicator to protect oil
Hydraulic normal and low level indicator lights
Hydraulic oil, air and water coolers standard – machine comes with both
Safety mat and safety plates with emergency stop for operational safety
Two hand anti tie down cycle start or foot pedal – both standard
Integrated gearbox reducer with multi-layer drive chain assembly for smooth controlled operational start / stop movement of bend arm extending the chain life many years beyond traditional hydraulic benders.
Low profile bend Arm
Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
Low working heights for ease of operation increasing production and improved safety of material handling
Multiple axis operation reducing cycle time and interference for optimum production
Centralized machine lubrication points – Automatic lubricating pump optional

UPGRADE OPTIONS

BendPro Office with Simulation – Office Part Development
BendPro CAD/STEP Interface Import CAD Files Directly to the Bender
BendPro CMM Closed Loop Bend Correction For Romer or Faro
BendPro Cell Interface for Loaders and Automation
BendPro Ghost Drive Cloned Spare Hard Drive
KLS – Keyence Laser Floor Scanner – In Lieu of Safety Mat
PPSI – Programmable Pressures for PD & PDA

OD CAPACITY SPECIFICATIONS

US16ED-4A up to 0.625″ OD
US20ED-4A up to 0.75″ OD
US25ED-4A up to 1″ OD
US30ED-4A up to 1.25″ OD
US38ED-4A up to 1.5″ OD
US50ED-4A up to 2″ OD
US65ED-4A up to 2.5″ OD
US80ED-4A up to 3″ OD
US90ED-4A up to 3.5″ OD
US130ED-4A up to 5″ OD
US150ED-4A up to 6″ OD

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
US16ED-4A	Hybrid Electric	16 mm or 0.625" OD	Double/Multi	Left or Right Hand
US20ED-4A	Hybrid Electric	20 mm or 0.75" OD	Double/Multi	Left or Right Hand
US25ED-4A	Hybrid Electric	25 mm or 1" OD	Double/Multi	Left or Right Hand
US30ED-4A	Hybrid Electric	30 mm or 1.25" OD	Double/Multi	Left or Right Hand
US50ED-4A	Hybrid Electric	50 mm or 2" OD	Double/Multi	Left or Right Hand
US65ED-4A	Hybrid Electric	65 mm or 2.5" OD	Double/Multi	Left or Right Hand
US80ED-4A	Hybrid Electric	80 mm or 3" OD	Double/Multi	Left or Right Hand
US90ED-4A	Hybrid Electric	90 mm or 3.5" OD	Double/Multi	Left or Right Hand
US130ED-4A	Hybrid Electric	130 mm or 5" OD	Double/Multi	Left or Right Hand
US150ED-4A	Hybrid Electric	150 mm or 6" OD	Double/Multi	Left or Right Hand
US38ED-4A	Hybrid Electric	38 mm or 1.49" OD	Double/Multi	Left or Right Hand

Select Series

Hybrid 5 Axis CNC Tube Benders

STANDARD MACHINE AND ACCESSORIES

Electrical power filtering to stabilize incoming power
Control electrical cabinet isolation to minimize vibration
Spacious lay out and well labeled electrical cabinet for ease of maintenance
Control electrical cabinet air conditioner – for long lasting servo drives and components
Hydraulic oil filtering system with condition indicator to protect oil
Hydraulic normal and low level indicator lights
Hydraulic oil, air and water coolers standard – machine comes with both
Safety mat and safety plates with emergency stop for operational safety
Two hand anti tie down cycle start or foot pedal – both standard
Integrated gearbox reducer with multi-layer drive chain assembly for smooth controlled operational start / stop movement of bend arm extending the chain life many years beyond traditional hydraulic benders.
Low profile bend Arm
Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
Low working heights for ease of operation increasing production and improved safety of material handling
Multiple axis operation reducing cycle time and interference for optimum production
Centralized machine lubrication points – Automatic lubricating pump optional

UPGRADE OPTIONS

BendPro Office with Simulation – Office Part Development
BendPro CAD/STEP Interface Import CAD Files Directly to the Bender
BendPro CMM Closed Loop Bend Correction For Romer or Faro
BendPro Cell Interface for Loaders and Automation
BendPro Ghost Drive Cloned Spare Hard Drive
KLS – Keyence Laser Floor Scanner – In Lieu of Safety Mat
PPSI – Programmable Pressures for PD & PDA

OD CAPACITY SPECIFICATIONS

US16ED-4A up to 0.625″ OD
US20ED-4A up to 0.75″ OD
US25ED-4A up to 1″ OD
US30ED-4A up to 1.25″ OD
US38ED-4A up to 1.5″ OD
US50ED-4A up to 2″ OD
US65ED-4A up to 2.5″ OD
US80ED-4A up to 3″ OD
US90ED-4A up to 3.5″ OD
US130ED-4A up to 5″ OD
US150ED-4A up to 6″ OD

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
US16MS-5A	Hybrid Electric	16 mm or 0.625" OD	Double/Multi	Left or Right Hand
US20MS-5A	Hybrid Electric	20 mm or 0.75" OD	Double/Multi	Left or Right Hand
US25MS-5A	Hybrid Electric	25 mm or 1" OD	Double/Multi	Left or Right Hand
US30MS-5A	Hybrid Electric	30 mm or 1.25" OD	Double/Multi	Left or Right Hand
US38MS-5A	Hybrid Electric	38 mm or 1.5" OD	Double/Multi	Left or Right Hand
US50MS-5A	Hybrid Electric	30 mm or 2" OD	Double/Multi	Left or Right Hand
US65MS-5A	Hybrid Electric	65 mm or 2.5" OD	Double/Multi	Left or Right Hand
US80MS-5A	Hybrid Electric	80 mm or 3" OD	Double/Multi	Left or Right Hand
US90MS-5A	Hybrid Electric	90 mm or 3.5" OD	Double/Multi	Left or Right Hand
US130MS-5A	Hybrid Electric	130 mm or 5" OD	Double/Multi	Left or Right Hand
US150MS-5A	Hybrid Electric	150 mm or 6" OD	Double/Multi	Left or Right Hand

Select Series

Hybrid 6 Axis CNC Tube Benders

STANDARD MACHINE AND ACCESSORIES

Electrical power filtering to stabilize incoming power
Control electrical cabinet isolation to minimize vibration
Spacious lay out and well labeled electrical cabinet for ease of maintenance
Control electrical cabinet air conditioner – for long lasting servo drives and components
Hydraulic oil filtering system with condition indicator to protect oil
Hydraulic normal and low level indicator lights
Hydraulic oil, air and water coolers standard – machine comes with both
Safety mat and safety plates with emergency stop for operational safety
Two hand anti tie down cycle start or foot pedal – both standard
Integrated gearbox reducer with multi-layer drive chain assembly for smooth controlled operational start / stop movement of bend arm extending the chain life many years beyond traditional hydraulic benders.
Low profile bend Arm
Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
Low working heights for ease of operation increasing production and improved safety of material handling
Multiple axis operation reducing cycle time and interference for optimum production
Centralized machine lubrication points – Automatic lubricating pump optional
Programmable Servo PDA reduces setup time and operator skill level, as well as control wall thinning and deformation of bend

UPGRADE OPTIONS

BendPro Office with Simulation – Office Part Development
BendPro CAD/STEP Interface Import CAD Files Directly to the Bender
BendPro CMM Closed Loop Bend Correction For Romer or Faro
BendPro Cell Interface for Loaders and Automation
BendPro Ghost Drive Cloned Spare Hard Drive
KLS – Keyence Laser Floor Scanner – In Lieu of Safety Mat
PPSI – Programmable Pressures for PD & PDA

OD CAPACITY SPECIFICATIONS

US38ED-4A up to 1.5″ OD
US50ED-4A up to 2″ OD
US65ED-4A up to 2.5″ OD
US80ED-4A up to 3″ OD

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
US38MS-6A	Hybrid Electric	38 mm or 1.5" OD	Double/Multi	Left or Right Hand
US50MS-6A	Hybrid Electric	30 mm or 2" OD	Double/Multi	Left or Right Hand
US65MS-6A	Hybrid Electric	65 mm or 2.5" OD	Double/Multi	Left or Right Hand
US80MS-6A	Hybrid Electric	80 mm or 3" OD	Double/Multi	Left or Right Hand

Select Series

The USA Hydraulic CNC Tube Benders

UTE’s Electric CNC Rotary Draw Tube Benders combine rugged durability with fast, repeatable bending. With standard features including, both right hand and left hand bending and generated bend (push bend) capability, these CNC Benders deliver high performance along with flexibility. American made with standard nonproprietary components, UTE’s CNC Tube Benders are easy to maintain and even easier to use thanks to industry leading BendPro G2 V3 touch screen controls. Whether the application is Automotive, Aerospace, HVAC or Furniture, UTE’s CNC line of tube fabrication equipment will save you time and money.

STANDARD FEATURES

BendPro G2 V3 touch screen controls
Clockwise and counter clockwise bending direction
Drop away hydraulic clamping
Direct acting hydraulic pressure die w/ adjustable partial retract feature
3/4-axis electric (bend, feed, plane, clr (optional)
Generated bend capability
Dual radius w/ stacked tooling

OPTIONAL FEATURES

Auto loader/ unloader including robotics
Bed extension
Mandrel attachment (with or w/o lube.)
Multiple radius w/ stacked tooling
Safety mats, light curtains
Tie bar
Wiper die base (with or w/o lube.)
Tube support

OD CAPACITY SPECIFICATIONS

UTE-US12M 12mm Up to .4244″ OD
UTE-US30M 30mm Up to 1.1811″ OD
UTE-US50M 50mm Up to 2″ OD
UTE-US80M 80mm Up to 3″ OD

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
UTE-US80M	Hydraulic	80 mm or 3.15" OD	Double/Multi	Orbital
UTE-US12M	Hybrid Electric	12 mm or .47" OD	Double/Multi	Orbital
UTE-US30M	Hybrid Electric	30 mm or 1.18" OD	Double/Multi	Orbital
UTE-US50M	Hybrid Electric	50 mm or 1.97" OD	Double/Multi	Orbital

Alpine AEMB/AEMR Series

UTE All-Electric Multi-Stack CNC Tube Benders

The AEMR-LR Series are touch screen, multi stack, all-electric CNC tube benders with 6 axes and Bend Head 180 degree left hand/right hand movement. The AEMR-LR equips both double radius draw-bending & push-bending functions in one machine. These electric bending machines feature a patented planetary gear driven bending head, which has a compact, rigid design providing a high accuracy of bending and at the same time minimizing machine interference. The versatility of these machines make them a perfect fit for the automotive, motorcycle, marine, furniture, fitness equipment and aerospace industries.

STANDARD FEATURES

Master IV Controller
PC base 15″ color LCD Touch Screen control — Easy and fast programming
Right and Left Hand Bending
Multi Stack Tooling — Double Bending on Left and Right
Patented Direct drive A/C servo motor bending head — Less interference area
Adopts planetary gears assembly as the speed reduction and torque transmission
Tool included to measure push or roll bending radius
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
Pressure Die assist – booster (excludes 30 model)
With Independent programmable speeds Y, B, and C axes
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Tools
Electric: As required (3 phase 208V or 220V or 480V)
Safety Mat

Upgrade Options

AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Dynamic Visual Simulation Software — Collision Protection
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB15AEMB-LR	All Electric	15 mm or .5905" OD	Multi	Left and Right Hand
AB20EMB-LR	All Electric	20 mm or .7874" OD	Multi	Left and Right Hand
AB30AEMR-LR	All Electric	30 mm or 1.1811" OD	Multi	Left and Right Hand
AB45AEMR-LR	All Electric	45 mm or 1.7716" OD	Multi	Left and Right Hand
AB50AEMR	All Electric	50 mm or 1.9685" OD	Multi	Left or Right Hand
AB75AEMR-LR	All Electric	75 mm to 2.9527" OD	Multi	Left and Right Hand
AB80AEMR	All Electric	80 mm or 3.1496" OD	Multi	Left or Right Hand
AB100AEMR	All Electric	100 mm or 3.9370" OD	Multi	Left or Right Hand

Alpine EBR Series

UTE Hybrid Double-Stack CNC Tube Benders

STANDARD FEATURES

Master IV Controller
PC base 15″ color LCD Touch Screen control — Easy and fast programming
Right and Left Hand Bending
ETR — Triple Stack with two Bend die plus one Rolling die
EBR — Double Stack with one Bend die plus one Rolling die
Patented Direct drive A/C servo motor bending head — Less interference area
Adopts planetary gears assembly as the speed reduction and torque transmission
Patented Cam-Type shifting system on bending head
Alternative Rotary Bend and Push Bend
With arc Curvature to measure and calculate the Radius
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
Pressure Die assist – booster (excludes 30 model)
With Independent programmable speeds Y, B, and C axes (10×8)
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Tools
Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options

AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Dynamic Visual Simulation Software — Collision Protection
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
ERB — Rear Booster Device (50 and above model)

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB25EBR	Hybrid Electric	25 mm or .9844" OD	Double Stack	Left or Right Hand
AB30EBR	Hybrid Electric	30 mm or 1.1811" OD	Double Stack	Left or Right Hand
AB38EBR	Hybrid Electric	38mm or 1.49" OD	Triple Stack	Left or Right Hand
AB50EBR	Hybrid Electric	50 mm or 1.9685" OD	Double Stack	Left or Right Hand
AB65EBR	Hybrid Electric	65 mm or 2.559" OD	Double Stack	Left or Right Hand
AB80EBR	Hybrid Electric	80 mm or 3.1496" OD	Double Stack	Left or Right Hand
US51AE-11A-LR	All Electric	51 mm or 2" OD	Triple/Multi	Left and Right Hand

Alpine ETR/EMR-V Series

UTE Hybrid Triple-Stack CNC Tube Benders

STANDARD Machine & Accessories

Master IV Controller
PC base 15″ color LCD Touch Screen control — Easy and fast programming
Right and Left Hand Bending
ETR — Triple Stack with two Bend die plus one Rolling die
EBR — Double Stack with one Bend die plus one Rolling die
ETR: DOB, POB, DBB, BHH 4 Axes are A/C Servo Motor
Patented Direct drive A/C servo motor bending head — Less interference area
Adopts planetary gears assembly as the speed reduction and torque transmission
Patented Cam-Type shifting system on bending head
Alternative Rotary Bend and Push Bend
With arc Curvature to measure and calculate the Radius
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
Pressure Die assist – booster (excludes 30 model)
With Independent programmable speeds Y, B, and C axes (10×8)
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Tools
Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options

AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Dynamic Visual Simulation Software — Collision Protection
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
ERB — Rear Booster Device (50 and above model)

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB25ETR	Hybrid Electric	25 mm or .9844" OD	Triple Stack	Left or Right Hand
AB30ETR	Hybrid Electric	30 mm or 1.1811" OD	Triple Stack	Left or Right Hand
AB38ETR	Hybrid Electric	38mm or 1.49" OD	Triple Stack	Left or Right Hand
AB50ETR	Hybrid Electric	50 mm or 1.9685" OD	Triple Stack	Left or Right Hand
AB65ETR	Hybrid Electric	65 mm or 2.559" OD	Triple Stack	Left or Right Hand
AB100ETR	Hybrid Electric	100 mm or 3.9370" OD	Triple Stack	Left or Right Hand
AB130EMR-V	Hybrid Electric	130 mm or 5.1181" OD	Triple Stack	Left or Right Hand
AB150EMR-V	Hybrid Electric	150 mm or 5.9055" OD	Triple Stack	Left or Right Hand

Alpine ED Series

UTE Electric Hybrid Double-Stack Tube Benders

Alpine’s ED Series electric pipe benders have a touch screen control and a double stack tooling design with 4 axes: Y- Feeding, B-Rotation, C-Bending and X- Horizontal tooling changing driven by A/C servo motors. Alpine machines feature their patented planetary gear-driven bending head. Its unique compact design provides a high accuracy of bending result and at the same time minimized machine interference and enhancing rigidity as well as speed reduction and high torque transmission. Perfectly suited for application in the Furniture, Automotive, Motorcycle, Fitness Equipment and Aerospace industries, just to name a few.

STANDARD Machine & Accessories

Master IV Controller
PC base 15″ color LCD Touch Screen control — Easy and fast programming
Right Hand Bending
Single or Double Stack Tooling — Draw Bending
ES: DOB, POB, DBB, 3 Axes are A/C Servo Motor
ED: DOB, POB, DBB, BHH 4 Axes are A/C Servo Motor
Patented Direct drive A/C servo motor bending head — Less interference area
Adopts planetary gears assembly as the speed reduction and torque transmission
Patented Cam-Type shifting system on bending head
Alternative Rotary Bend and Push Bend
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
Pressure Die assist – booster (excludes 30 model)
With Independent programmable speeds Y, B, and C axes (10×8)
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Tools
Electric: As required (3 phase 208V or 220V or 480V)

Available Upgrade Options

AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Dynamic Visual Simulation Software — Collision Protection
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
ERB — Rear Booster Device (50 and above model)

Available Upgrade Options

AB12ED Up to 0.4724″ OD
AB18ED Up to 0.7″ OD
AB30ED Up to 1.18″ OD
AB38ED Up to 1.5″ OD
AB50ED Up to 2″ OD
AB65ED Up to 2.5″ OD
AB80ED Up to 3″ OD
AB100ED Up to 4″ OD

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB12ED	Hybrid Electric	12 mm or .4724" OD	Double Stack	Left or Right Hand
AB18ED	Hybrid Electric	18 mm or .7086" OD	Double Stack	Left or Right Hand
AB18EMB-V	Hybrid Electric	18 mm or .7086" OD	Double Stack	Left or Right Hand
AB25ED	Hybrid Electric	25 mm or .9844" OD	Double Stack	Left or Right Hand
AB30ED	Hybrid Electric	30 mm or 1.1811" OD	Double Stack	Left or Right Hand
AB38ED	Hybrid Electric	38.1 mm or 1.5" OD	Double Stack	Left or Right Hand
AB50ED	Hybrid Electric	50.8 mm or 2.0" OD	Double Stack	Left or Right Hand
AB65ED	Hybrid Electric	65 mm or 2.559" OD	Double Stack	Left or Right Hand
AB80ED	Hybrid Electric	80 mm or 3.1496" OD	Double Stack	Left or Right Hand
AB100ED	Hybrid Electric	100 mm or 3.9370" OD	Double Stack	Left or Right Hand

Alpine HD Series

UTE Hydraulic Double-Stack Tube Benders

Alpine’s HD Series CNC tube bending machines are touch screen controlled and feature a double stack tooling design. These machines combine two different radii rotary draw bending in same tool stack and have Y (feeding) and B (rotation) axes driven by A/C servo motor with the C (bending) axis driven by a proportional hydraulic system. The PC/PLC Dual Controller System provides a 3-D preview and bending simulation for added precision. Alpine HD Series tube benders combine excellent performance with accuracy & durability and are suitable for high production manufacturing such as furniture, automotive, motorcycle, display and fitness equipment industries, just to name a few.

STANDARD Machine & Accessories

Master IV Controller
PC base 15″ color LCD Touch Screen control — Easy and fast programming
Right Hand Bending
HS- Single Stack Tooling for Draw Bending
HD- Double Stack Tooling for Draw Bending
HS/HD: POB, DBB, Axes are A/C Servo Motor
Proportion Hydraulic Driven Bending Head
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
Pressure Die assist – booster (excludes 30 model)
With Independent programmable speeds Y, B, and C axes (10×8)
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Tools
Electric: As required (3 phase 208V or 220V or 480V)
Safety Mat

Available Upgrade Options

AMRU — Anticipate Mandrel Retraction Unit
AML — Auto Mandrel Lubrication
Dynamic Visual Simulation Software — Collision Protection
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
ERB — Rear Booster Device (50 and above model)

Available Upgrade Options

AB38HD Up to 1.5″ OD
AB50HD Up to 2″ OD
AB65HD Up to 2.5″ OD
AB80HD Up to 3″ OD
AB100ED Up to 4″ OD
AB130HD Up to 5.1181″ OD
AB150HD/HT Up to 6″ OD

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB38HD	Hydraulic	38.1 mm or 1.5" OD	Double Stack	Left or Right Hand
AB50HD	Hydraulic	50.8 mm or 2.0" OD	Double Stack	Left or Right Hand
AB65HD	Hydraulic	65 mm or 2.559" OD	Double Stack	Left or Right Hand
AB80HD	Hydraulic	80 mm or 3.1496" OD	Double Stack	Left or Right Hand
AB100HD	Hydraulic	100 mm or 3.9370" OD	Double Stack	Left or Right Hand
AB130HD	Hydraulic	130 mm or 5.1181" OD	Double Stack	Left or Right Hand
AB150HD/AB150HT	Hydraulic	150 mm or 5.9055" OD	Double Stack	Left or Right Hand

Alpine HS Series

UTE Hydraulic Single-Stack Tube Benders

STANDARD Machine & Accessories

Master IV Controller
PC base 15″ color LCD Touch Screen control — Easy and fast programming
Right Hand Bending
HS- Single Stack Tooling for Draw Bending
HD- Double Stack Tooling for Draw Bending
HS/HD: POB, DBB, Axes are A/C Servo Motor
Proportion Hydraulic Driven Bending Head
With DBB alternative Repeat Feeding or End Grip function
Unlimited Program Storage
With Metric and Inch setting conversion
XYZ to YBC conversion
Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
Pressure Die assist – booster (excludes 30 model)
With Independent programmable speeds Y, B, and C axes(10×8)
With Air Cooling System
Automatic Slide-way Lubrication for bend arm to reduce maintenance time
Foot Pedal Cycle start
Wiper die Bracket
3 Mandrel Rods
Operation and Maintenance Manual
Tool Box with Tools
Electric: As required (3 phase 208V or 220V or 480V)

Available Upgrade Options

AMRU — Anticipate Mandrel Retraction Unit
Dynamic Visual Simulation Software — Collision Protection
Safety Mat Connection Ready (without CE Mark)
CE Mark
Safety Mat
Safety Scanner
Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
ERB — Rear Booster Device (50 and above model)

Available Upgrade Options

AB38HD Up to 1.5″ OD
AB50HD Up to 2″ OD
AB65HD Up to 2.5″ OD
AB80HD Up to 3″ OD
AB100ED Up to 4″ OD
AB130HD Up to 5.1181″ OD
AB150HD/HT Up to 6″ OD

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Model	Drive	OD Capacity	Tooling Stacks	Direction
AB38HS	Hydraulic	38.1 mm or 1.5" OD	Single Stack	Left or Right Hand
AB50HS	Hydraulic	50.8 mm or 2.0" OD	Single Stack	Left or Right Hand
AB65HS	Hydraulic	65 mm or 2.559" OD	Single Stack	Left or Right Hand
AB80HS	Hydraulic	80 mm or 3.1496" OD	Single Stack	Left or Right Hand
AB100HS	Hydraulic	100 mm or 3.9370" OD	Single Stack	Left or Right Hand
AB120HS	Hydraulic	120 mm or 5.1181" OD	Single Stack	Left or Right Hand
AB150HS	Hydraulic	150 mm or 5.9055" OD	Single Stack	Left or Right Hand
AB180HS	Hydraulic	180 mm or 7.0" OD	Single Stack	Left or Right Hand
AB250HS	Hydraulic	250 mm or 10" OD	Single Stack	Left or Right Hand

Hybrid TubeBenders

3 Year Warranty • Installation and 3 day training • 24/7 Tech Support

Products

Select Series

Hybrid 4 Axis CNC Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Select Series

Hybrid 5 Axis CNC Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Select Series

Hybrid 6 Axis CNC Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Select Series

The USA Hydraulic CNC Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Alpine AEMB/AEMR Series

UTE All-Electric Multi-Stack CNC Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Alpine EBR Series

UTE Hybrid Double-Stack CNC Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Alpine ETR/EMR-V Series

UTE Hybrid Triple-Stack CNC Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Alpine ED Series

UTE Electric Hybrid Double-Stack Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Alpine HD Series

UTE Hydraulic Double-Stack Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

Alpine HS Series

UTE Hydraulic Single-Stack Tube Benders

Starting at $249,900*

Available in multiple sizes / capacities with additional equipment upgrades

*Base price without upgrades

YOU MAY BE INTERESTED IN

OUR OTHER PRODUCTS

Tube Lasers

PRESS BRAKES

TUBE BENDERS.

Hybrid Tube
Benders
