UTE Alpine 15AEMB-LR All Electric Multi Stack CNC Bender
The AEMR-LR Series are touch screen, multi stack, all-electric CNC tube benders with 6 axes and Bend Head 180 degree left hand/right hand movement. The AEMR-LR equips both double radius draw-bending & push-bending functions in one machine. These electric bending machines feature a patented planetary gear driven bending head, which has a compact, rigid design providing a high accuracy of bending and at the same time minimizing machine interference. The versatility of these machines make them a perfect fit for the automotive, motorcycle, marine, furniture, fitness equipment and aerospace industries.

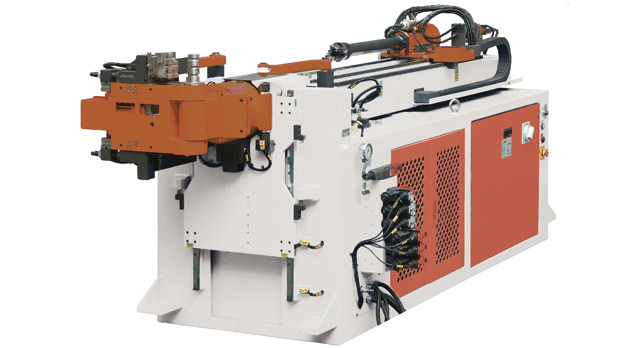

UTE Alpine Model AB20AEMR-LR Shown Above
Standard Machine and Accessories
- Master IV Controller
- PC base 15″ color LCD Touch Screen control — Easy and fast programming
- Right and Left Hand Bending
- Multi Stack Tooling — Double Bending on Left and Right
- Patented Direct drive A/C servo motor bending head — Less interference area
- Adopts planetary gears assembly as the speed reduction and torque transmission
- Tool included to measure push or roll bending radius
- With DBB alternative Repeat Feeding or End Grip function
- Unlimited Program Storage
- With Metric and Inch setting conversion
- XYZ to YBC conversion
- Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
- Pressure Die assist – booster (excludes 30 model)
- With Independent programmable speeds Y, B, and C axes
- With Air Cooling System
- Automatic Slide-way Lubrication for bend arm to reduce maintenance time
- Foot Pedal Cycle start
- Wiper die Bracket
- 3 Mandrel Rods
- Operation and Maintenance Manual
- Tool Box with Tools
- Electric: As required (3 phase 208V or 220V or 480V)
- Safety Mat
Upgrade Options
- AMRU — Anticipate Mandrel Retraction Unit
- AML — Auto Mandrel Lubrication
- Dynamic Visual Simulation Software — Collision Protection
- Safety Mat Connection Ready (without CE Mark)
- CE Mark
- Safety Scanner
- Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
