UTE Alpine 25EBR Hybrid Double Stack CNC Bender

  • alpine-30ebr-bender
  • alpine-etr-ebr-series-cnc-benders

The Alpine EBR Series tube benders have touch screen controls, a double stack tooling design with 4 axes (Y- Feeding, B-Rotation, C-Bending, X- Horizontal tooling changing) and are driven by an A/C servo motor. These machines equip both draw-bending and push-bending function in the same tool stack. Their electric-driven rotary draw bending arm performs with high accuracy and reduced electrical consumption. Alpine machines feature Alpine’s patented planetary gear-driven bending head. Its unique compact design provides a highly accurate bending result with minimized machine interference, enhancing rigidity, speed reduction and high torque transmission. The EBR Series tube benders are perfect for application in the furniture, automotive, motorcycle, fitness equipment and aerospace industries and more.

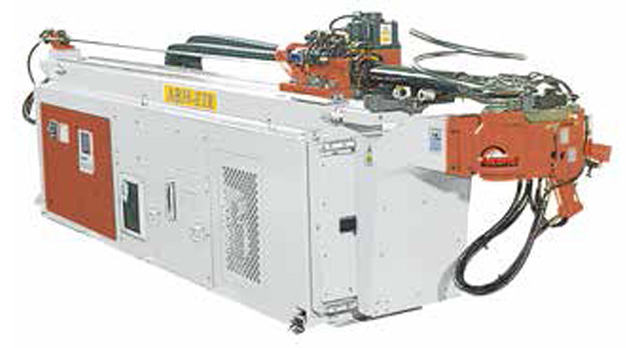

UTE Alpine Model AB38EBR Shown Above

Standard Machine and Accessories

  • Master IV Controller
  • PC base 15″ color LCD Touch Screen control — Easy and fast programming
  • Right Hand Bending
  • ETR — Triple Stack with two Bend die plus one Rolling die
  • EBR — Double Stack with one Bend die plus one Rolling die
  • ETR: DOB, POB, DBB, BHH 4 Axes are A/C Servo Motor
  • Patented Direct drive A/C servo motor bending head — fewest interference area
  • Adopts planetary gears assembly as the speed reduction and torque transmission
  • Patented Cam-Type shifting system on bending head
  • Alternative Rotary Bend and Push Bend
  • With arc Curvature to measure and calculate the Radius
  • With DBB alternative Repeat Feeding or End Grip function
  • Unlimited Program Storage
  • With Metric and Inch setting conversion
  • XYZ to YBC conversion
  • Using parameter to determine simultaneous motion of Y, B & C Axes — the interaction between Y,B,C axis
  • Booster Device of Pressure Die (excludes 30 model)
  • With Independent programmable speeds Y, B, and C axes (10×8)
  • With Air Cooling System
  • Automatic Slide-way Lubrication for bend arm to reduce maintenance time
  • Foot Pedal Cycle start
  • Wiper die Bracket
  • 3 Mandrel Rods
  • Operation and Maintenance Manual
  • Tool Box with Adjusted Tools
  • Electric: As required (3 phase 208V or 220V or 480V)

Available Upgrade Options:

  • AMRU — Anticipate Mandrel Retraction Unit
  • AML — Auto Mandrel Lubrication
  • Dynamic Visual Simulation Software — Collision Protection
  • Safety Mat Connection Ready (without CE Mark)
  • CE Mark
  • Safety Mat
  • Safety Scanner
  • Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
  • ERB — Rear Booster Device (50 and above model)
