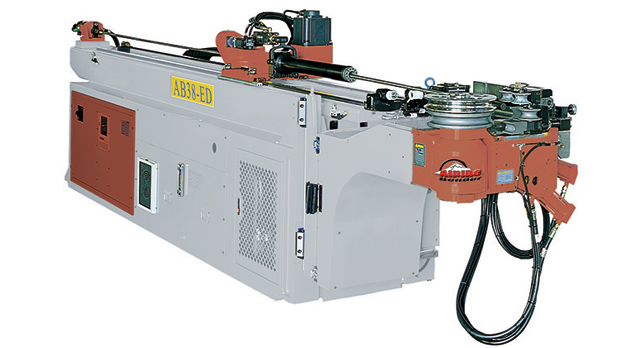

UTE Alpine 38ED Series Double Stack Electric Hybrid Benders

  • alpine-38ed
  • alpine-38ed-1

Alpine’s ED Series tube benders have a touch screen control and a double stack tooling design with 3 axes: Y- Feeding, B-Rotation, C-Bending and X- Horizontal tooling changing. Alpine machines feature their patented planetary gear-driven bending heads. Its unique compact design provides a high accuracy of bending result and at the same time minimized machine interference and enhancing rigidity. This 3 axis pipe bending machine is perfectly suited for application in the Furniture, Automotive, Motorcycle, Fitness Equipment and Aerospace industries, just to name a few.

Standard Machine and Accessories

  • Master IV Controller
  • PC base 15″ color LCD Touch Screen control — Easy and fast programming
  • Right Hand Bending
  • Single or Double Stack Tooling — Draw Bending
  • ES: DOB, POB, DBB, 3 Axes are A/C Servo Motor
  • ED: DOB, POB, DBB, BHH 4 Axes are A/C Servo Motor
  • Patented Direct drive A/C servo motor bending head — fewest interference area
  • Adopts planetary gears assembly as the speed reduction and torque transmission
  • Patented Cam-Type shifting system on bending head (ED only)
  • With DBB alternative Repeat Feeding or End Grip function
  • Unlimited Program Storage
  • With Metric and Inch setting conversion
  • XYZ to YBC conversion
  • Using parameter to determine simultaneous motion of Y, B & C Axes -the interaction between Y,B,C axis
  • Booster Device of Pressure Die (excludes 18,30 model)
  • With Independent programmable speeds Y, B, and C axes (10×8)
  • With Air Cooling System
  • Automatic Slide-way Lubrication for bend arm to reduce maintenance time
  • Foot Pedal Cycle start
  • Wiper die Bracket
  • 3 Mandrel Rods
  • Operation and Maintenance Manual
  • Tool Box with Adjusted Tools
  • Electric: As required (3 phase 208V or 220V or 480V)

Upgrade Options

  • AMRU — Anticipate Mandrel Retraction Unit
  • AML — Auto Mandrel Lubrication
  • Dynamic Visual Simulation Software — Collision Protection
  • Safety Mat Connection Ready (without CE Mark)
  • CE Mark
  • Safety Mat
  • Safety Scanner
  • Free Standing Pedestal — The foot pedal is replaced by a free standing pedestal
  • ERB- Rear Booster Device (50 and up model)

OD Specifications

  • AB12ED Up to 0.4724″ OD
  • AB18ED Up to 0.7″ OD
  • AB25ED Up to 0.9842″ OD
  • AB30ED Up to 1.18″ OD
  • AB38ED Up to 1.5″ OD
  • AB50ED Up to 2″ OD
  • AB65ED Up to 2.5″ OD
  • AB80ED Up to 3″ OD
  • AB100ED Up to 4″ OD
