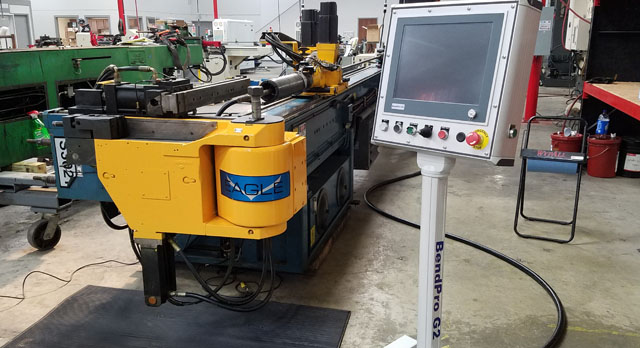

Pre-Owned Refurbished Bender with Modern BendPro G2V2 Controller

  • Factory Refurbished CNC tube bender with new controller

This refurbished machine is ready to go and can be seen under power at our Johnson City Tn location. We can build tooling to meet you project requirements. We can also run your tools and tubing.

This machine was in very good condition mechanically when it arrive in our inventory. We freshened up a few of the systems. The work that was performed was the following:

  • Control System – A new Bend Pro G2V2 Control was installed. The original electrical panel wiring was removed and completely rewired. New Rexroth servo drives and cables were installed.
  • Hydraulic System – New hydraulic pump, new 24VDC valves and a new oil cooler was added.
  • Pneumatic System – New FLR and new valves
  • Mechanical Systems – The bend arm and drop away clamp was rebuilt to new specs. The spindle, pressure die and carriage were all checked and serviced.

Machine Specifications – Supplied By the Manufacturer

  • Maximum DOB Speed (C Axis) 3-1/4″ Bore Bend Cylinder: 30 rpm
  • Maximum DBB Speed (Y Axis): 3,000″ per min.
  • Maximum POB Speed (B Axis): 65 rpm
  • DOB Repeatability (C Axis): ± .05˚
  • DBB Repeatability (Y Axis): ± .004″
  • POB Repeatability (B Axis): ± .05˚
  • Dimensions: 233″x 62″ x 54″
  • Working Height: 44.6″
  • Weight: Approx. 8,000 lbs.
  • Carriage Movement (Y Axis) Direct Drive:Servo Motor
  • Collet Rotation (B Axis):Servo Motor

Bend Arm Drive (C Axis): Hydraulic servo control with heavy duty chain, driven by a hydraulic cylinder, precision spindle and large diameter idlers.

Carriage Design (Y and B Axis): Direct drive rack and pinion carriage guided by precision linear bearings. No chains required.

Bend Arm Safety Plates and Emergency Buttons: Standard

Electrical Requirements: 440/460/480 Volts, 60 Hz, 3 Phase (Non-standard electrical requirements can be quoted separately. Please specify.)

Documentation: Hard copy of Operator and Maintenance Manuals

Typical Bending Capacity – Supplied By the Manufacturer

Material type (based on 2 x Dia CLR – consult for tighter) Inch Units (OD x Wall)
Stainless Steel 3.0″ OD X .065″
Carbon Steel 3.0″ OD X .120″

Typical Bender Specifications – Supplied By the Manufacturer

Machine Feature Units
STANDARD TUBE LENGTH (WITH MANDREL): 12’ (144’’)
BEND ARM ROTATION: COUNTER CLOCKWISE
MAX DEGREE OF BEND: 195˚
MAX CLR: 8″
MIN CLR: (consult) .5″ (REQUIRES BOLT DOWN BEND DIE)
